Les différents types d'authentification

8/7/2016

2 Commentaires

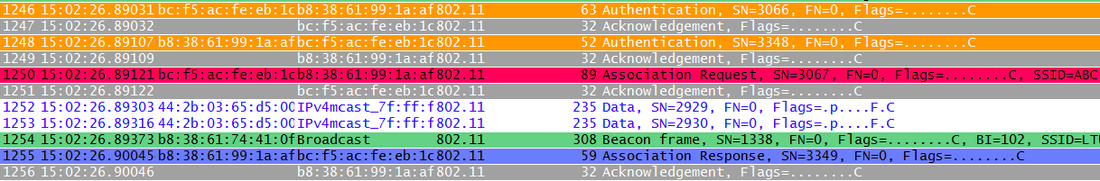

Open Authentication
probe request
probe response
authentication
authentication
association request
association response
Authentification 802.11 (le discovery, l'authent et l'association)

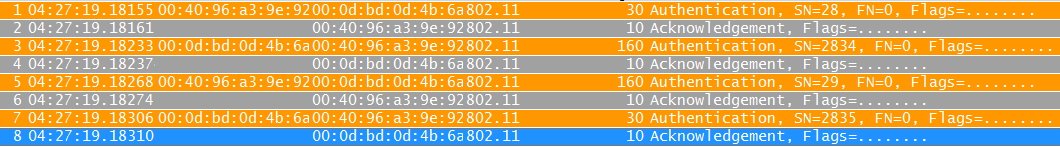

Shared Key Authentication
probe request
probe response
authentication request
authentication response with cleartext challenge
authentication request with WEP encrypted challenge
authentication response (success or failure)
association request
association response
2ème mode d'authentification 802.11, a ne plus utiliser, n'est permet pas de faire de RSN (robust security network)

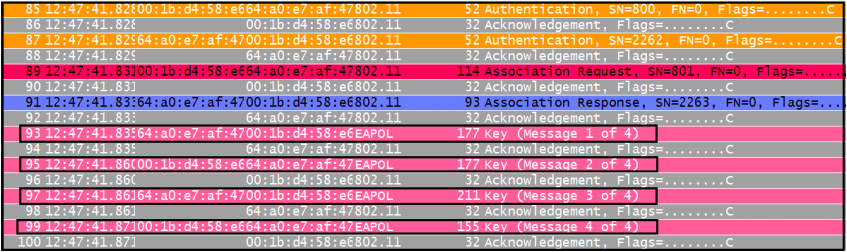

WPA-Personal/WPA2-Personal
probe request
probe response
authentication
authentication
association request
association response
4-way handshake
On complète le Open Sytem Authen 802.11 par un 4-WAY Handshake qui permet d'authentifier et encrypter les données.

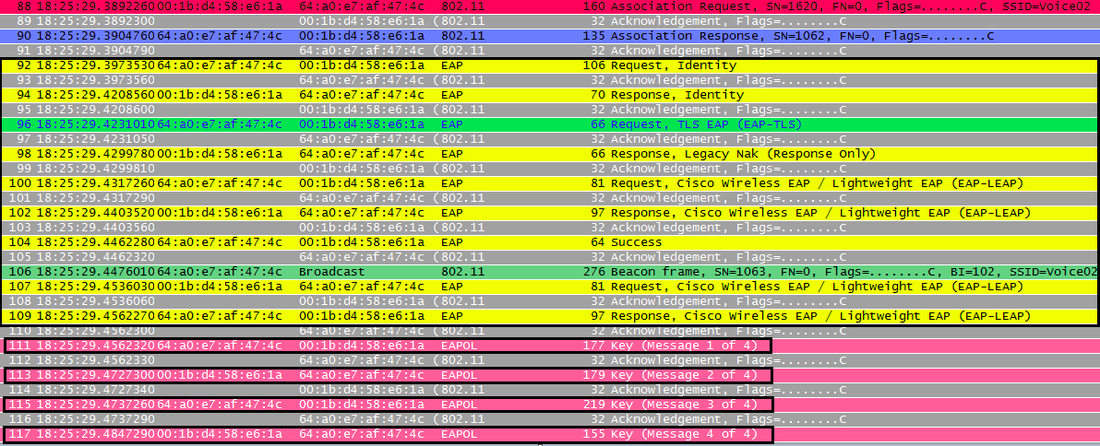

WPA-Enterprise/WPA2-Enterprise
probe request
probe response
authentication
authentication
association request
association response
EAP exchange
4-way handshake
On complète le Open Sytem Authen 802.11, par le processus 802.1X/EAP,, qui permet une authentification mutuelles (STA et Serveurs) et fournit alors le plus haut niveau de sécurité.

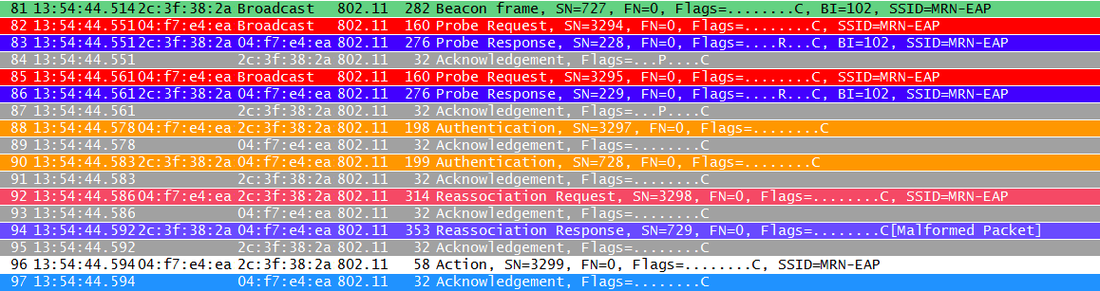

FT re-association
probe request
probe response
authentication
authentication
re-association request
re-association response
(no 4-way handshake)
Permet lors des roaming, de ne pas refaire les étapes EAP et 4-WAY Handshake, soit pour des roaming en moins de 50 ms, vitale pour la VoWifi !
